Concrete Forms™ Above Grade Reveals

Concrete Forms™ steel form system logo or product image Concrete Forms™ are modular, steel form systems designed to create clean, uniform, and durable above-grade concrete pier reveals. Built for demanding job site conditions in transmission and energy infrastructure work, these forms deliver the speed, precision, and repeatability today’s foundation contractors expect—without the waste and inconsistency of site-built forms.

Manufactured in the USA and available with the shortest lead times in the industry, our steel concrete forms are reusable, easy to install, and designed with safety and handling in mind.

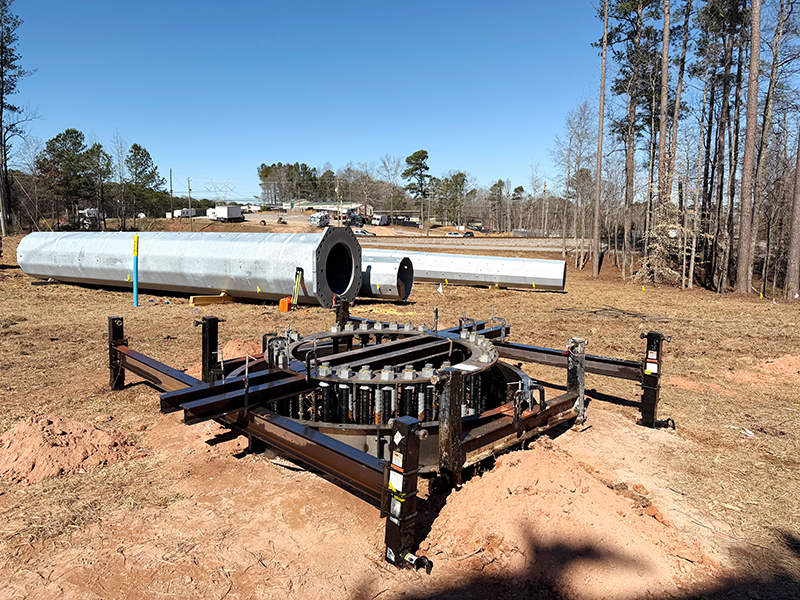

Concrete Forms™ installed on an above-grade pier reveal

View the  Concrete Forms™ Product Sheet .

Clean reveals. Repeatable results.

Concrete Forms™ Overview

Applications

  • Transmission line (T-Line) foundations
  • Substation and switching structure piers
  • Solar and utility-scale energy installations
  • Industrial drilled shaft projects with 12" or greater reveal requirements

Product Features

  • 14 GA. cold rolled steel
  • Short lead times for most sizes
  • Stackable to accommodate a wide range of reveal heights
  • Available in two, four, or multi-panel configurations
  • Included transport bracket for transportation and storage
  • Made in the USA

Sizes & Availability

Concrete Forms are available in 1–3' standard heights for diameters from 48"–144". Custom sizes can be fabricated upon request.

Standard Heights

Diameter Range

Notes
1'–3' 48"–144" Custom sizes available upon request

Why FTI Concrete Forms?

  • Reusable: High-strength steel construction enables multiple pour cycles with consistent results.
  • Cost-Effective: More economical than site-built forms.
  • Safe & Efficient: Bolt-on, adjustable lifting eyes and brackets make handling, transport, and storage safer and faster.
  • Precise: Clean, uniform finishes that simplify structure interface and inspection.

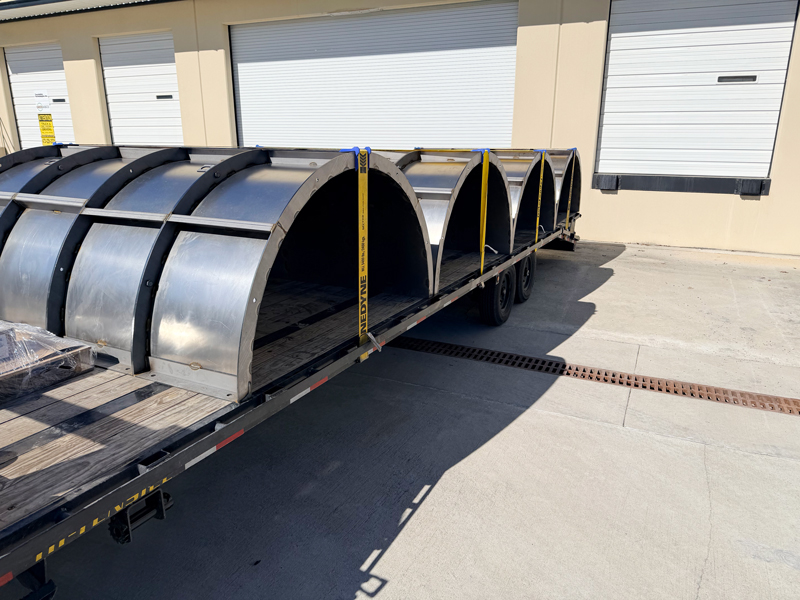

Concrete Forms™ reveal example

Request a Quote

Have questions about Concrete Forms™? Ready to get started on your next project? Request a quote now to speak with our team about specifications, pricing, and lead times. We’ll get back to you within one business day.
